Print Data Round Items

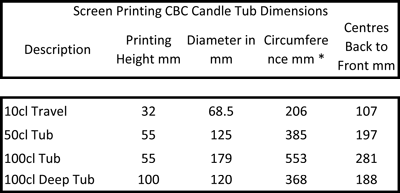

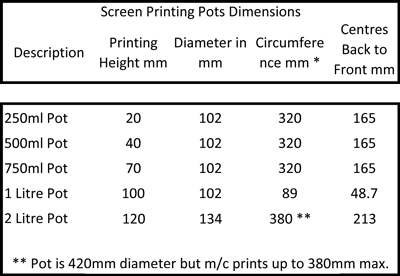

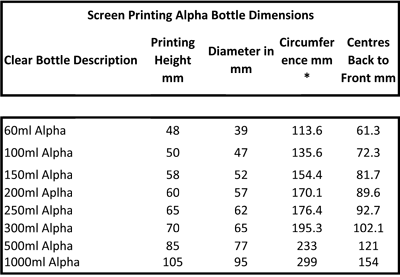

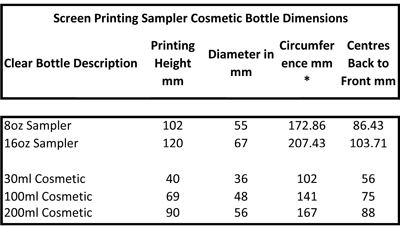

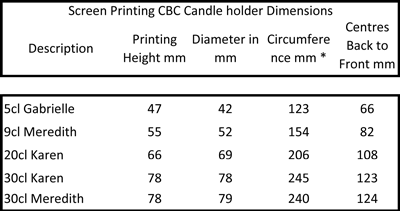

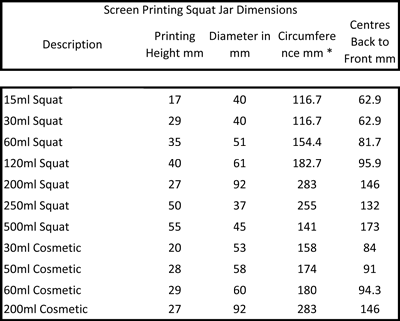

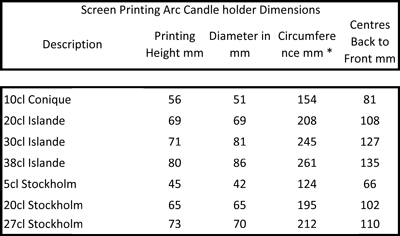

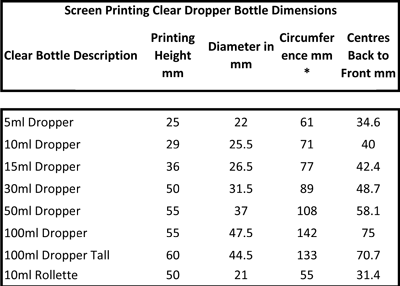

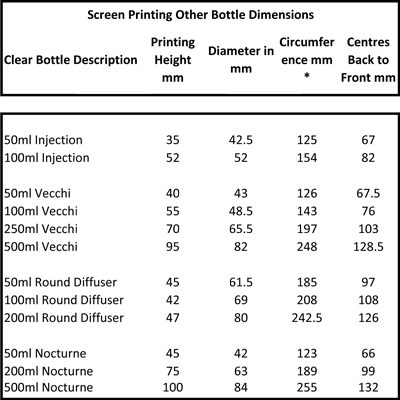

This table gives the dimensions required to produce a screen to fit the following items. Some designs may require some modifications to the sizes. A suggested minimum font size is Arial 6
* The circumference is the maximum label length allowing a 9mm gap for the printing rubber to be able to lift without overprinting.
The Centres is the position of the centre of text so that the Back and Front line up.
This only applies to Round Bottles as printed by Colorlites on their machines. All Glass will have a tolerance on the dimensions of about plus or minus 1mm which will make a difference between one batch of glass and another.
This data should not be used for other printers. Where Complicated or large wrap around printing is required please discuss as some glasses do not lend themselves to this kind of printing. View Template
The dimensions should be checked against the actual bottle at layout stage as centre to centre may not look right for your layout. Amber Bottles can vary please enquire.
